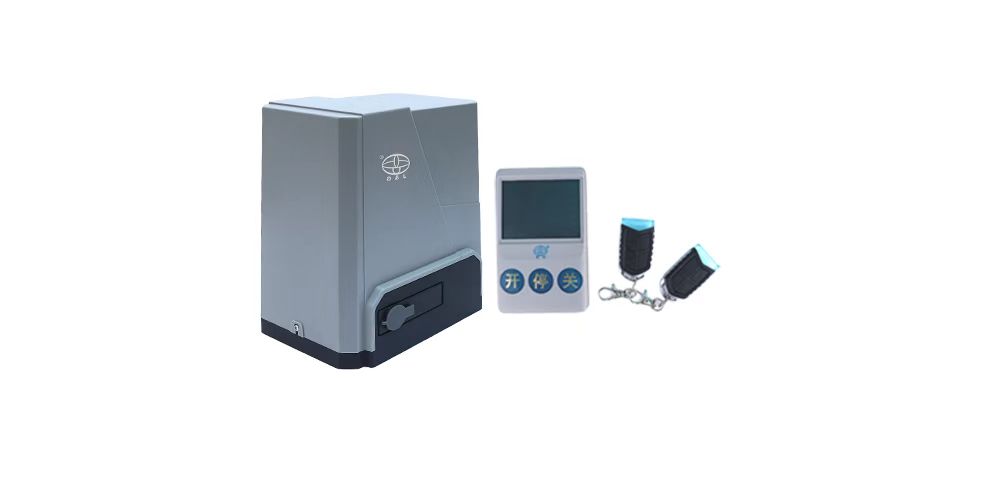

Highlights of J&G electric sliding gate motor (JGS-SL Series):
● Ensure stable operation by soft start & stop technique.
● Can connect smartphone visual control, infrared detector, license plate recognition, etc.
● Open the manual release when the power cut off, convenient for using.
● It has the features of slow heating, stable starting, high safety, waterproof and explosion-proof, etc.
● There is a magnet limit switch to ensure the maximum displacement of the door body and reliable operation.
● The motor is equipped with a temperature protector, which will automatically cut off the power supply to protect the motor when the temperature is too high.
● When the door is blocked during closing, the door will rebound, and when it is blocked during opening, it will stop running. The resistance intensity can be adjusted.
Specifications of J&G electric sliding door motor (JGS-SL Series):
● Type: JG-SL800/SL1500/SL2000
● Rated voltage: 220V 50Hz
● Rated power: 370 W 550 W 750 W
● Max. load: 800 KG 1500 KG 2000KG
● Door operation speed: 11-13 m/min
● Motor material: Copper
● Limit switch: Magnet Limit Switch
● Noisy: ≤ 60 dB
● Warranty: 5 Years
● Work system: S2
● Work conditions: -20℃~+70℃
● Frequency: 433.92 MHz
● Remote control distance: ≥ 45 M
● Remote control mode: Three-key or Single-key Control
Application scenarios of J&G electric sliding gate opener (JGS-SL Series):
J&G's JGS-SL electric slide gate motor is suitable for residential, commercial, and industrial electric sliding gates/doors.
If you have any questions or need further information about this electric sliding gate motor system, please feel free to call us at +86 18125331125 or email us at info@juguang.com!
