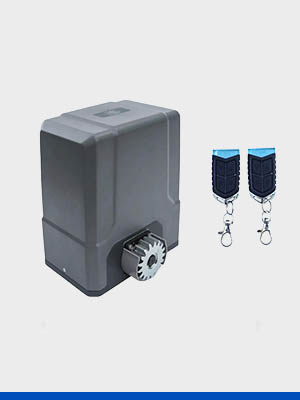

Highlights of J&G electric sliding gate motor (JG-SL-DC Series):
● Ensure stable operation by soft start & stop technique.
● This motor is equipped with a reserve power supply and can also be connected to an external solar panel, which can be used in places with power outages or shortages.● Can connect smartphone visual control, infrared detector, license plate recognition, etc.
● Open the manual release when the power cut off, convenient for using. ● It has the features of slow heating, stable starting, high safety, waterproof and explosion-proof, etc. ● There is a magnet limit switch to ensure the maximum displacement of the door body and reliable operation. ● The motor is equipped with a temperature protector, which will automatically cut off the power supply to protect the motor when the temperature is too high. ● When the door is blocked during closing, the door will rebound, and when it is blocked during opening, it will stop running. The resistance intensity can be adjusted. Specifications of J&G electric sliding door motor (JG-SL-DC Series):
● Type: JG-SL-DC500/JG-SL-DC800
● Rated voltage: 220V 50Hz
● Rated power: 150 W 170 W
● Max. load: 500 KG 800 KG
● Door operation speed: 16-18 m/min
● Motor material: Copper
● Limit switch: Magnet Limit Switch
● Noisy: ≤ 60 dB
● Warranty: 5 Years
● Work system: S2, 20 min
● Work conditions: -20℃~+70℃
● Frequency: 433.92 MHz
● Battery: 12V/9AH
● Remote control distance: ≥ 45 M
● Remote control mode: Three-key or Single-key Control
Application scenarios of J&G electric sliding gate opener (JG-SL-DC Series): J&G's JG-SL-DC electric slide gate motor is suitable for residential and commercial electric sliding gates/doors. If you have any questions or need further information about this electric sliding gate motor system, please feel free to call us at
+86 18125331125 or email us at info@juguang.com!
